Discription
This is a newly designed product that uses the PL2303TA chip manufactured by Taiwan Prolific. The PL2303TA provides a convenient solution for connecting a RS232-like full-duplex asynchronous serial device to any universal serial bus (USB) host. The PL2303TA is perfectly compatible with the win XP/VISTA/7/8/8.1 system and can emulate the existing applications that allow COM-based ports on most operating systems to easily port and perform USB connectivity without the need to rewrite the COM port software. Apply traditional COM ports.
By utilizing the advantages of USB bulk transfer mode, large data buffer and automatic flow control, the PL2303TA can achieve higher throughput than the traditional UART does not require (universal asynchronous transceiver) true RS232 signal, the transmission rate is higher than 115200 The base point can be used for even higher performance. The PL2303TA’s flexible baud rate generator can be programmed to produce any rate between 75 base points and 6 million base points.
The PL2303TA is designed for mobile and embedded solutions and offers a compact and easily adaptable to any connector and handheld device. With the operating or suspend mode being very power hungry, the PL2303TA is the perfect power-filled left-to-connect device bus-powered operation.

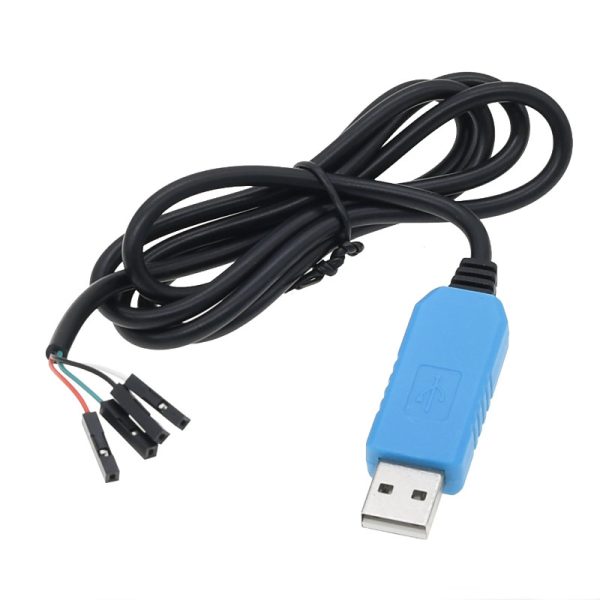

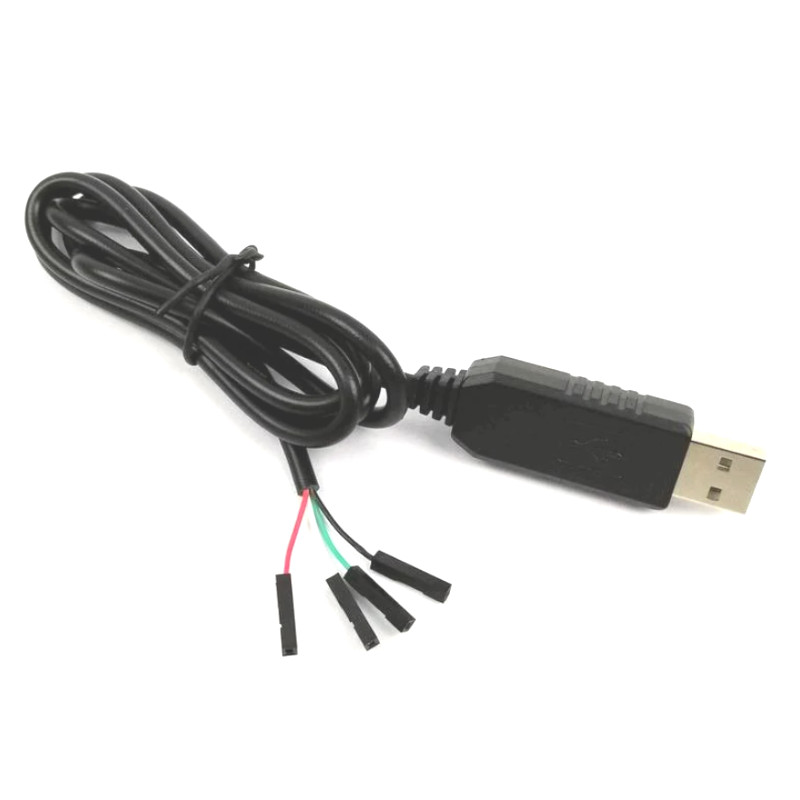

This product is specifically for laboratories, product testing, low-cost MCU communication and other applications, there are 4 lead lines:

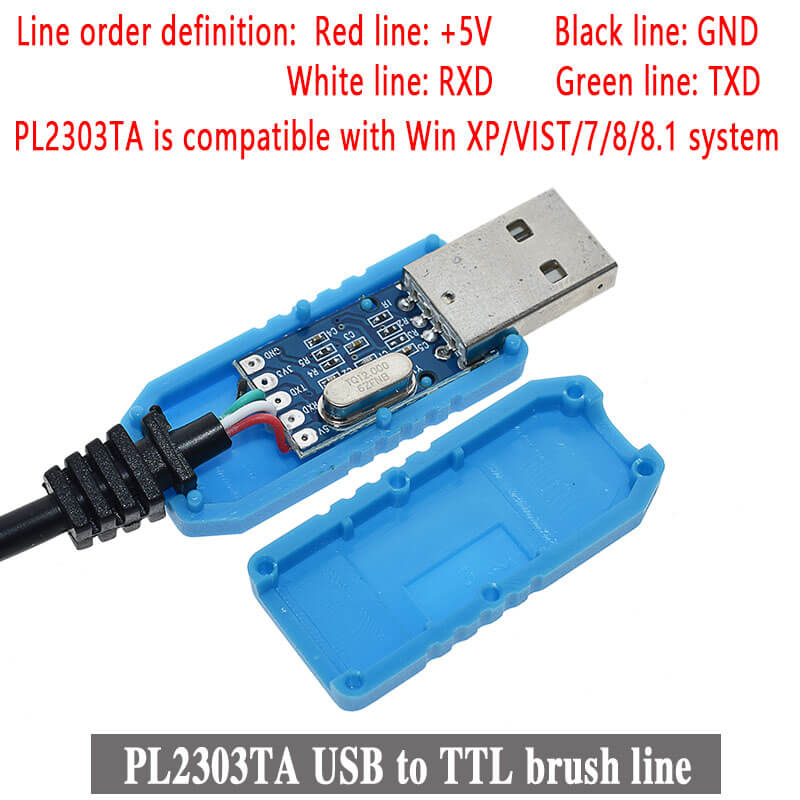

Red +5V,Black GND,White RXD,Green TXD
Applications
Single-chip solution upgrade for traditional RS232 device to USB interface
USB to RS232 converter / cable / dongle
Health/medical USB interface data transmission line
USB interface for personal infotainment/media player docking
USB interface data transmission line for mobile phone/handheld computer
Serial-over-IP wireless solution
USB barcode / smart card reader
GPS / Navigation USB Interface
Point of sale terminal (POS) terminal/printer
Computer docking station / port replicator
Industrial / Instrumentation / Automation Control USB Interface
USB Modem / Wireless / Zigbee USB Interface
Set-top box (STB) / home gateway USB interface
BatteryCharger application
USB interface of MCU-based devices
המחיר עם הנחה לרכישה באתר בלבד
התמונות להמחשה בלבד
