סנסור טיפות גשם ושלג לארדואינו

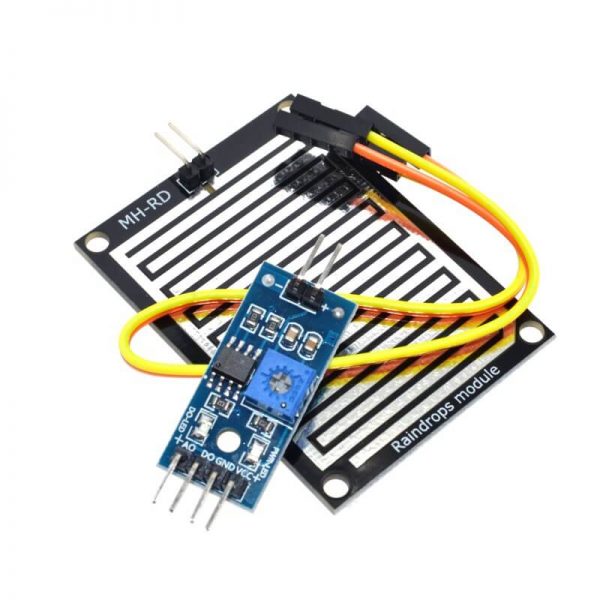

Raindrops Detection Sensor Module Snow RainWeather

FA3004

10.00

Share on facebook
אהבת? שתף בפייסבוק

The output in the form: digital switching outputs (0 and 1) and analog AO voltage output;

TTL-level output, TTL output valid signal is low. Driving capability 100MA so, can directly drive relays, buzzer, a small fan, and so on.

Sensitivity can be adjusted via potentiometer

LED lights up when there is no rain output is high, raindrop up, the output ground level, LED light.

Feature

Distribution bit to adjust sensitivity

A fixed bolt hole for easy installation

Power indicator, the output signal LED indicator

The comparator output, the signal is clean, waveform, driving ability over 15mA

Wide voltage LM393 comparator

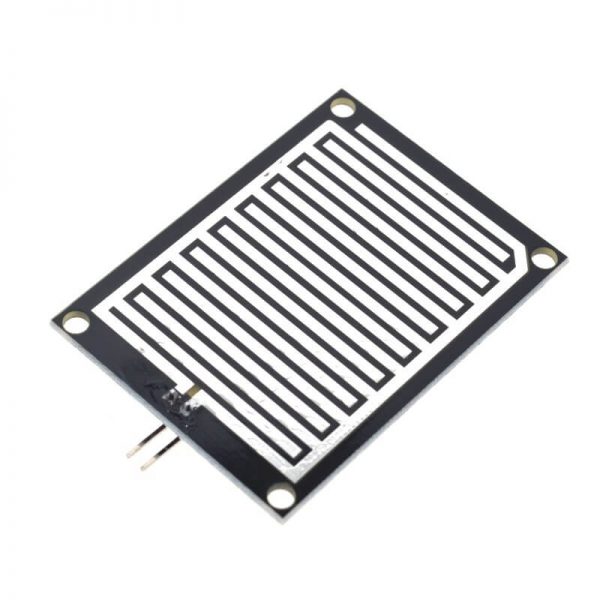

A large area of â⒬‹â⒬‹rain board, more conducive to detect rain

Board with positioning holes to facilitate installation

Raindrops and control panels are separate, easy to wire leads

Specification

Small board PCB size: 3.2cm x 1.4cm

Operating voltage: 3.3V-5V

Voltage: 5V

How to use

Connected to 5V power supply, the power indicator light, sensor board is not water droplets, DO output is high, the switch lights off, dropping on a drop of water, DO output is low, the indicator light switch,

Brush off the the above water droplets, has returned to output high state. . . .

AO analog output can be connected to the microcontroller AD port to detect the size of the drops in the above rainfall.

DO TTL digital outputs can also be connected to the microcontroller detects whether there is rain.

Connection mode

1, VCC: positive power supply (3-5V)

2, GND: negative one.

3, DO: TTL switching signal output

4, AO: Analog signal output
