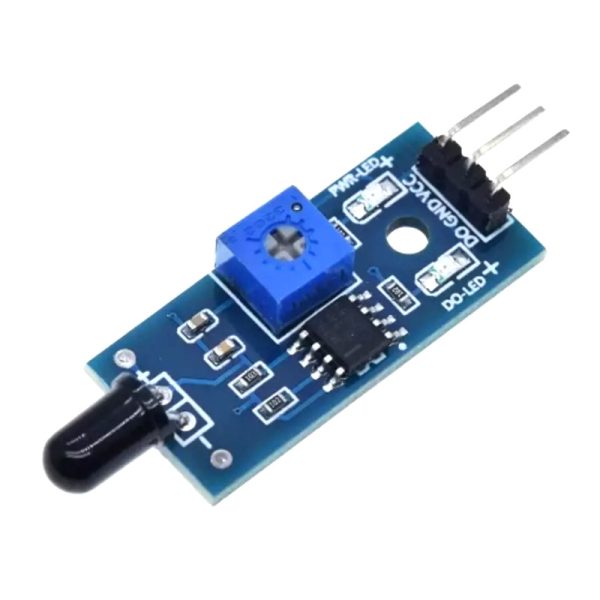

חיישן בעירה להבה IR אש

חיישן בעירה להבה IR אש

המחיר המקורי היה: ₪25.00.המחיר הנוכחי הוא: ₪20.00.

* המחיר המצוין הוא לאתר בלבד

חיישן בהירה IR

מתח עבודה 3.3V – 5V

FA3088 – 1

קטגוריות: ארדואינו, ציוד נלווה, כללי, מיקרו־בקרים

תיאור

1.Can detect the flame or the light with the wavelength at the range of 760 nm to 1100 nm.

2.The detection angle is about 60 degrees,extremelty sensitive to the flame spectrum.

3.Sensitivity is adjustable. (shown in blue digital potentiometer)

4.The comparator output with clean signal,good waveform,strong driving ability of more than 15mA.

5.With an adjustable precision potentiometer to adjust the sensitivity.

6.Operating voltage:3.3V-5V.

7.The output form:DO digital switching outputs (0 and 1).

8.A fixed bolt hole is set for easy installation.

9.Small plates PCB size:3.2cm * 1.4cm.

10.Using LM393 comparator with wide voltage.

Specifications:

1.The flame sensor is most sensitive to flame,and it will also respond to ordinary light,generally used in fire alarm and other purposes.

2.A small panel output interface can be directly connected with the microcontroller IO port.

3.The sensor should be kept a certain distance from the flame,so as not to damage the sensor because of high temperature.

4.the test distance for thelighter flame should be 80cm,the larger the flame,the larger the test distance.

Note:

Please don't do reverse polarity for "+" and "-",or it might burn the board.

Package Included:

1 * 3 Pin IR Flame Detection Sensor Module
