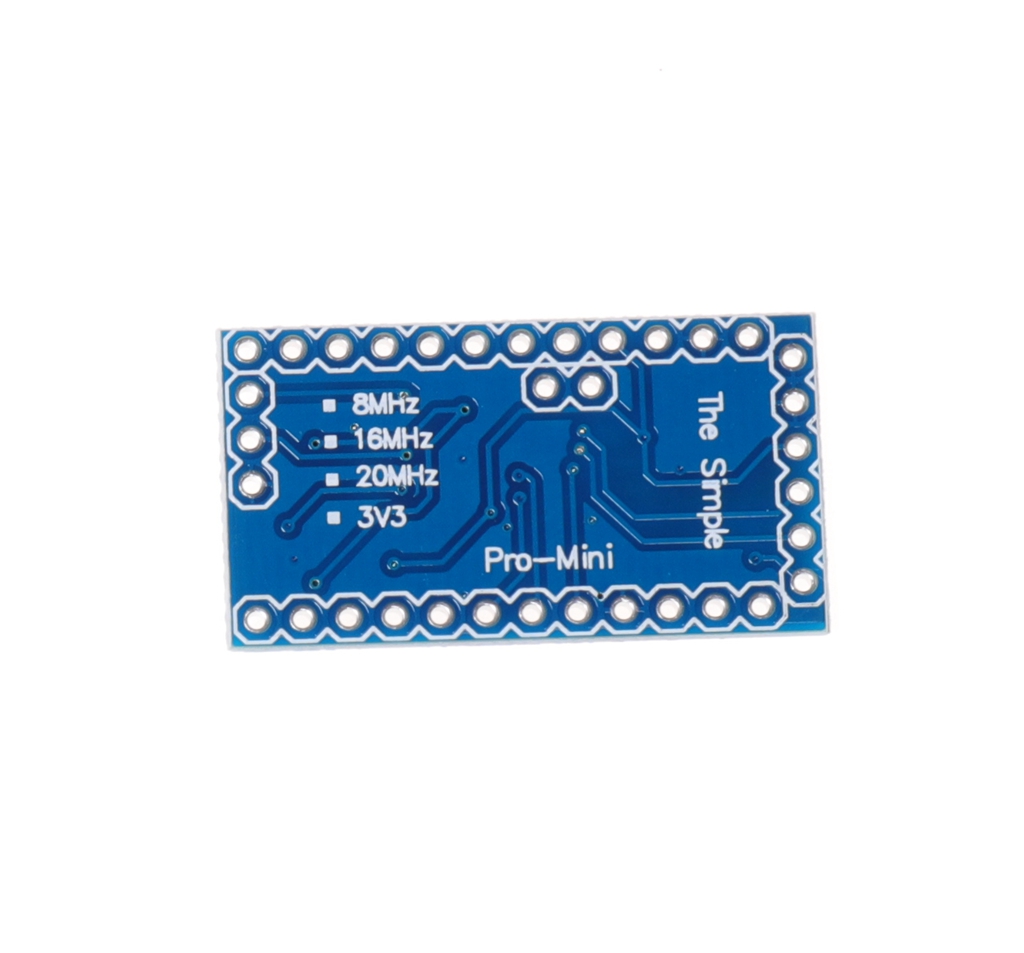

כרטיס PRO MINI 5V

כרטיס פרו מיני

AT MEGA 328P

דגם FA1015





25.00

אהבת? שתף בפייסבוק

תיאור

This is the professional version of the Mini Pro is a microcontroller board, has its good burn Bootloader, without the user having to buy ISP burner were burning, easy to use. It has 14 digital input / output pins (of which 6 can be used as PWM outputs), 8 analog inputs (increase A6 A7 with two analog input ports than the regular version), an 8MHz resonator, a reset button, the installation hole pin head.Technical parameters:

1. 14 digital input/output port RX and TX, D2 ~ D13,
2. 8 analog input port A0 ~ A7
3. 1 to the TTL level a serial port to send and receive port RX/TX
4.6 a PWM port, D3, D5, D6, D9, D10, D11
5. Using Atmel Atmega328P – AU microcontroller
6. Support serial download
7. Support external 3.3 V ~ 12 V dc power supply
8. Support 9 v batteries
9. 16 MHZ clock frequency
10. Size: 33.3 * 33.3 (mm)

התמונות להמחשה בלבד
