Features

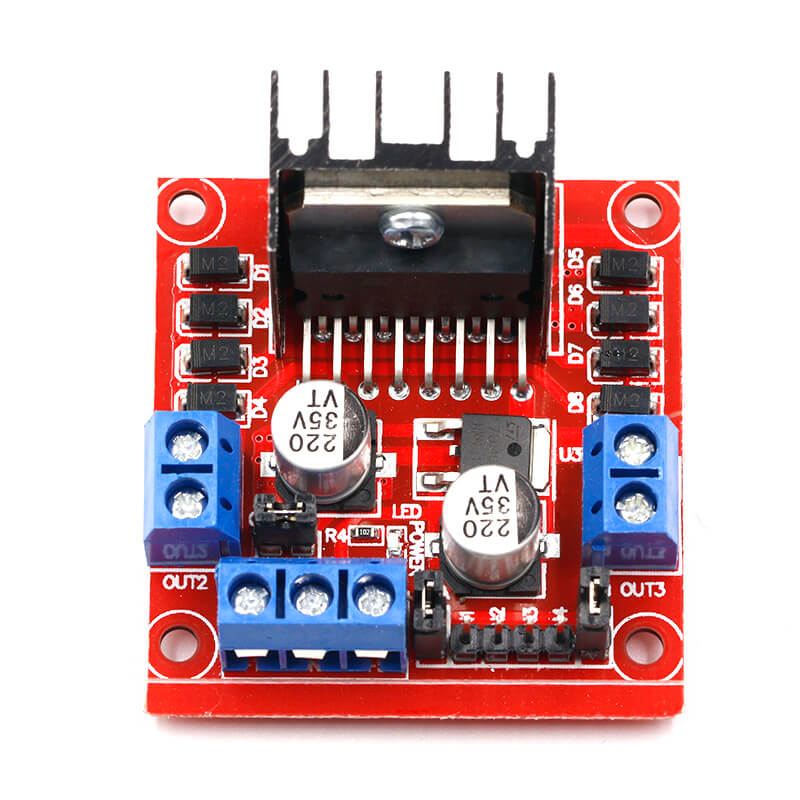

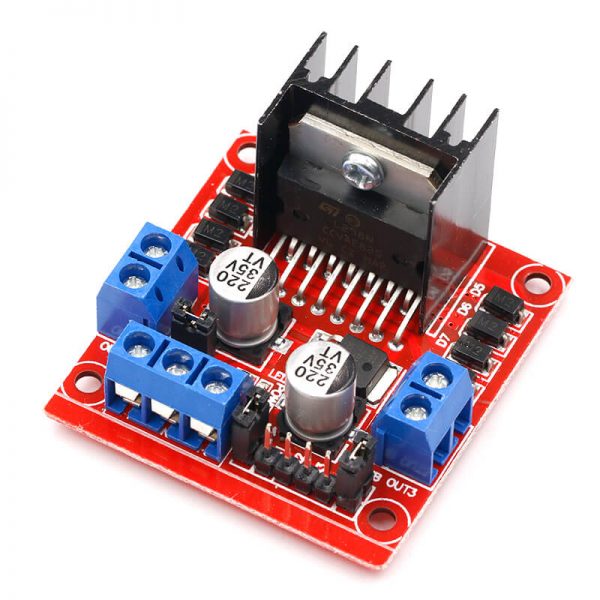

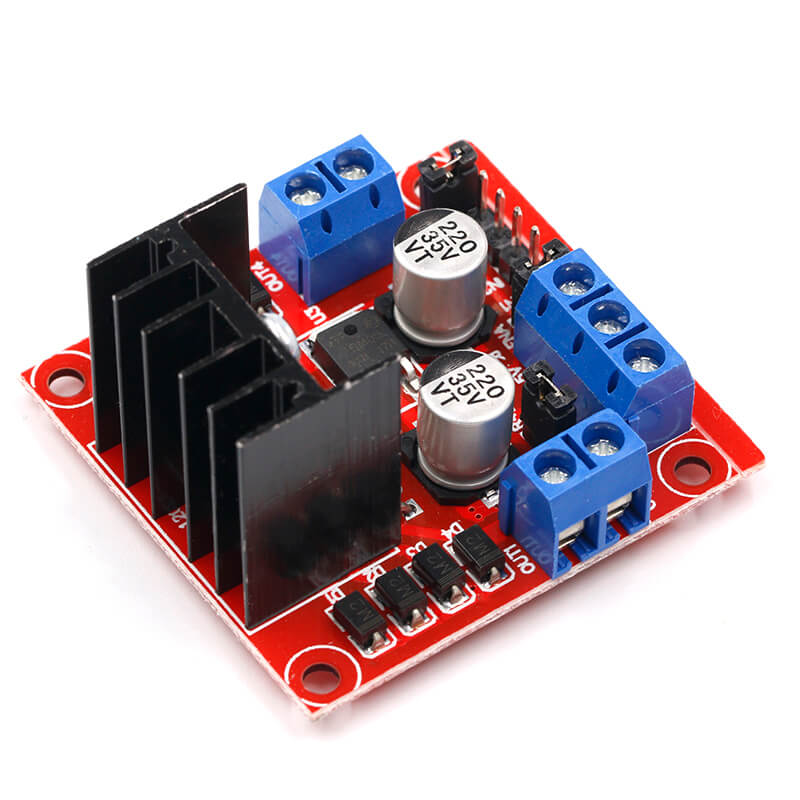

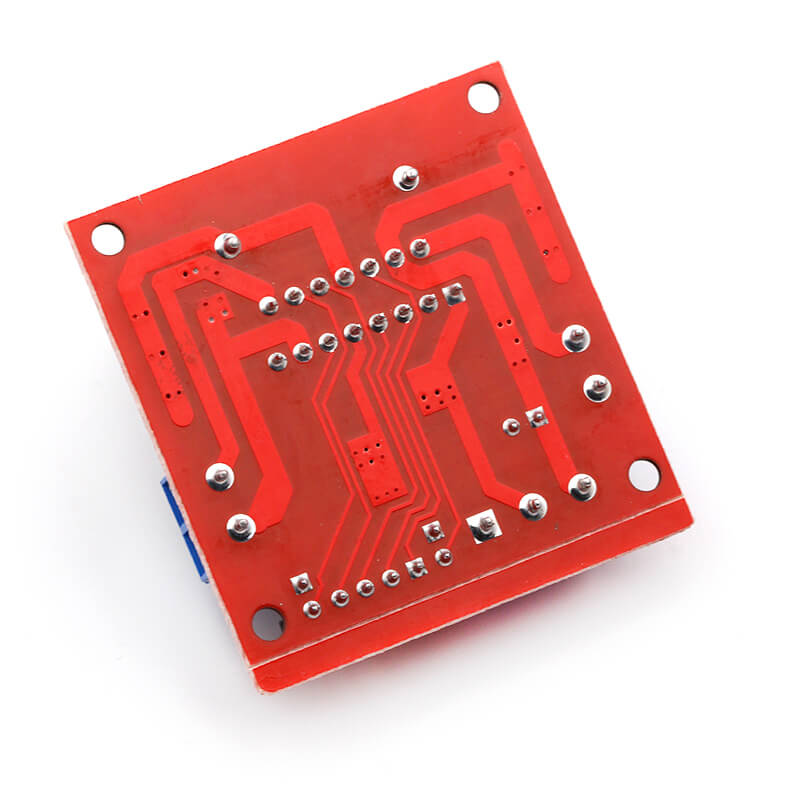

1. L298N as main chip, ST corporation production.
2.Low heat,outstanding anti-interference performance.
3.High working power to 46v,large current can reach 3A MAX and continue current is 2A, power to 25W
4.Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
5.Built-in 78M05,get power from drive power,however, when drive power over12V, please use the external 5V power as power supply.
6.Large capacity filter capacitance,afterflow protection diode, more stable and reliable.
Specification
Double H bridge drive
Chip: L298N (ST NEW)
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA
Drive current: 2A(MAX single bridge)
Max power: 25W
Size: about 43 x 43 x 26mm
Net weight:about 26g
Note
1.Due to the hand measurement, there have size error about 1-2cm or more
2.Please be reminded that due to lighting effects and monitor’s brightness/contrast settings etc, the color tone of the photo and the actual item could be slightly different
