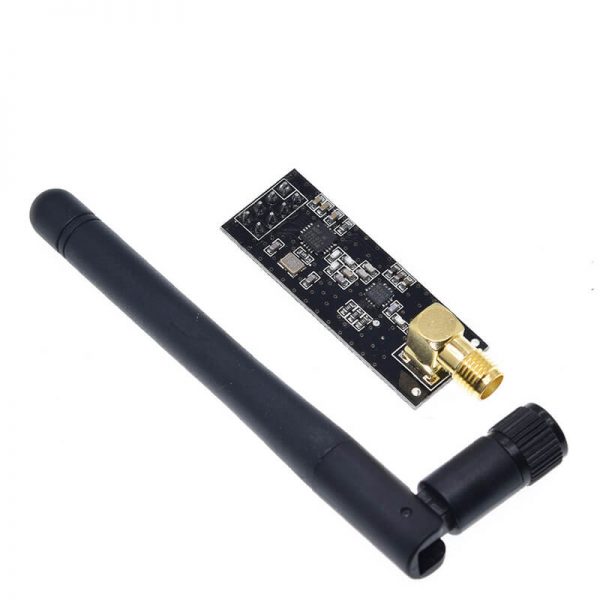

This wireless Transceiver module is an easy and suitable module if you want to setup your wireles communication system with low cost!! It can achieve a good balance between wireless transition performance and cost! You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system! What\’s more, this nRF24L01+ module is designed with Power amplifier and SMA antenna. This allowed you to use the wireless communication up to 1100 meters! (No barrier)
Frequence: 2.4GHz~2.5GHz
Operating voltage: 3 ~ 3.6V Max
Current: 115mA
Multi-frequency: 125 frequency
Support up to six channels of data reception
:Description
Voltage: 3-3.6V
Max output power: +20 dBm
Working current in transmit mode: 115mA
Working current in receiver mode: 45mA
Current in mode: 4.2uA
Operating temperature: -20-70 degree
Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode
PA growth: 20dB
LAN growth: 10dB
LAN noise figure: 2.6dB
Antenna growth: 2dBI
2M rate: 520m
