מודול זמזם אקטיבי לארדואינו

The characteristics of the passive buzzer is
1 passive internal without shock source, so if use dc signal can’t make it.Must use 2 k ~ 5 k square wave to drive it
For more than 2 sound frequency control, can make “m hair sola west” effect.
3 in some particular case, can reuse and LED a control

The characteristics of the active buzzer is
1 Active buzzer inside with shock source, so as long as the electricity will call
2 Program control convenient, single chip microcomputer a high and low level can make the sound, and the passive buzzer is can’t do.
Each weight is about 6 g

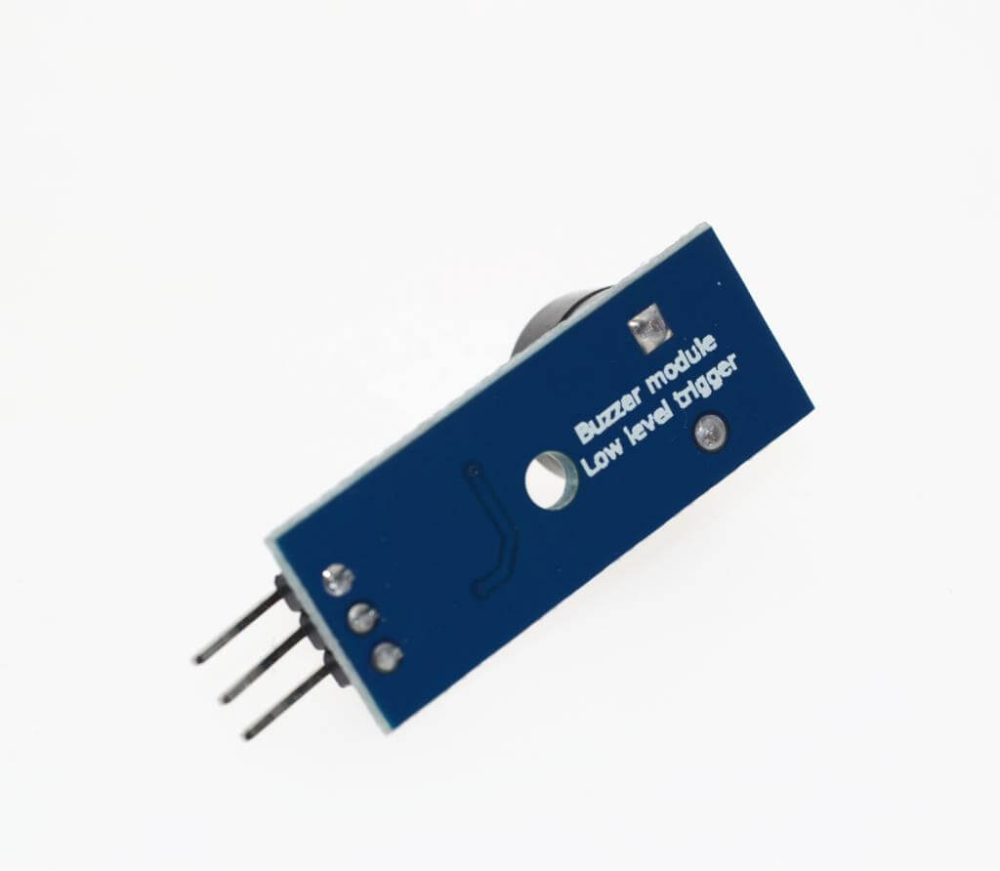

Module description

1 module driven by S8550 triode

2 working voltage of 3.3 V to 5 V
3 sets of fixed bolt hole, convenient installation
4 small board PCB size: 3.3 cm X 1.3 cm

Module interface specification (3 wire system)
1 VCC external 3.3 V to 5 V voltage (which can be directly connected to 5 V microcontroller and 3.3 V microcontroller)
2 GND external GND
3 I/O external microcontroller IO port
